One Way RCBD Analysis

this is a reading note of this tutorial.

# (install &) load packages
pacman::p_load(
  conflicted,
  desplot,
  emmeans,
  ggtext,
  multcomp,
  multcompView,
  tidyverse)

# handle function conflicts
conflicts_prefer(dplyr::filter)
conflicts_prefer(dplyr::select)

# load data
path <- "https://raw.githubusercontent.com/SchmidtPaul/dsfair_quarto/master/data/Clewer&Scarisbrick2001.csv"
dat <- read_csv(path)

the columns block and cultivar should be encoded as factors

# the columns block and cultivar should be encoded as factors
dat <- dat %>%
  mutate(across(c(block, cultivar), ~ as.factor(.x)))
dat

# A tibble: 12 × 5
   block cultivar yield   row   col
   <fct> <fct>    <dbl> <dbl> <dbl>
 1 B1    C1         7.4     2     1
 2 B1    C2         9.8     3     1
 3 B1    C3         7.3     1     1
 4 B1    C4         9.5     4     1
 5 B2    C1         6.5     1     2
 6 B2    C2         6.8     4     2
 7 B2    C3         6.1     3     2
 8 B2    C4         8       2     2
 9 B3    C1         5.6     2     3
10 B3    C2         6.2     1     3
11 B3    C3         6.4     3     3
12 B3    C4         7.4     4     3

Mini exercise

Get mean yeild per calt and sourt best caul to top

dat %>%
  group_by(cultivar) %>%
  summarise(mean_yield = mean(yield)) %>%
  arrange(desc(mean_yield))

# A tibble: 4 × 2
  cultivar mean_yield
  <fct>         <dbl>
1 C4              8.3
2 C2              7.6
3 C3              6.6
4 C1              6.5

Using `dlookr::describe()`

dlookr::describe() is more useful than summarise.

Important

Don’t load dlookr, instead only call the function dlookr::describe(). Otherwise it will affect font size of ggplot. More info on this tutorial.

About Percentile

dat %>%
  group_by(cultivar) %>%
  dlookr::describe(yield)

Registered S3 methods overwritten by 'dlookr':
  method          from
  plot.transform  scales
  print.transform scales

# A tibble: 4 × 27
  described_variables cultivar     n    na  mean    sd se_mean   IQR skewness
  <chr>               <fct>    <int> <int> <dbl> <dbl>   <dbl> <dbl>    <dbl>
1 yield               C1           3     0   6.5 0.9     0.520 0.9       0
2 yield               C2           3     0   7.6 1.93    1.11  1.8       1.55
3 yield               C3           3     0   6.6 0.624   0.361 0.600     1.29
4 yield               C4           3     0   8.3 1.08    0.624 1.05      1.15
# ℹ 18 more variables: kurtosis <dbl>, p00 <dbl>, p01 <dbl>, p05 <dbl>,
#   p10 <dbl>, p20 <dbl>, p25 <dbl>, p30 <dbl>, p40 <dbl>, p50 <dbl>,
#   p60 <dbl>, p70 <dbl>, p75 <dbl>, p80 <dbl>, p90 <dbl>, p95 <dbl>,
#   p99 <dbl>, p100 <dbl>

p00 … percentile e.g. p01 <dbl>: 1% of value smaller than <dbl>. p50 is the min. p50 is the mediam. p100 is the max.

More Application using `dlookr::describe()`

We can also get can summarize per block and per cultivar.

dat %>%
  group_by(cultivar) %>%
  dlookr::describe(yield) %>%
  select(cultivar:sd, p00, p50, p100) %>%
  arrange(desc(mean))

# A tibble: 4 × 8
  cultivar     n    na  mean    sd   p00   p50  p100
  <fct>    <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
1 C4           3     0   8.3 1.08    7.4   8     9.5
2 C2           3     0   7.6 1.93    6.2   6.8   9.8
3 C3           3     0   6.6 0.624   6.1   6.4   7.3
4 C1           3     0   6.5 0.9     5.6   6.5   7.4

Extract Values and Save as a Vector

It’s possible to extract certain values (e.g. here the means per cultivar) from a tibble and save it into a vector.

# extract mean values from tibble into a vector
mymeans <- dat %>%
  group_by(cultivar) %>%
  summarise(mean_yield = mean(yield)) %>%
  ungroup()

mymeans

# A tibble: 4 × 2
  cultivar mean_yield
  <fct>         <dbl>
1 C1              6.5
2 C2              7.6
3 C3              6.6
4 C4              8.3

# option 1: with $ just like in baseR
mymeans$mean_yield

[1] 6.5 7.6 6.6 8.3

# option 2: with pull() from dplyr
mymeans %>% pull(mean_yield)

[1] 6.5 7.6 6.6 8.3

Plot the Data

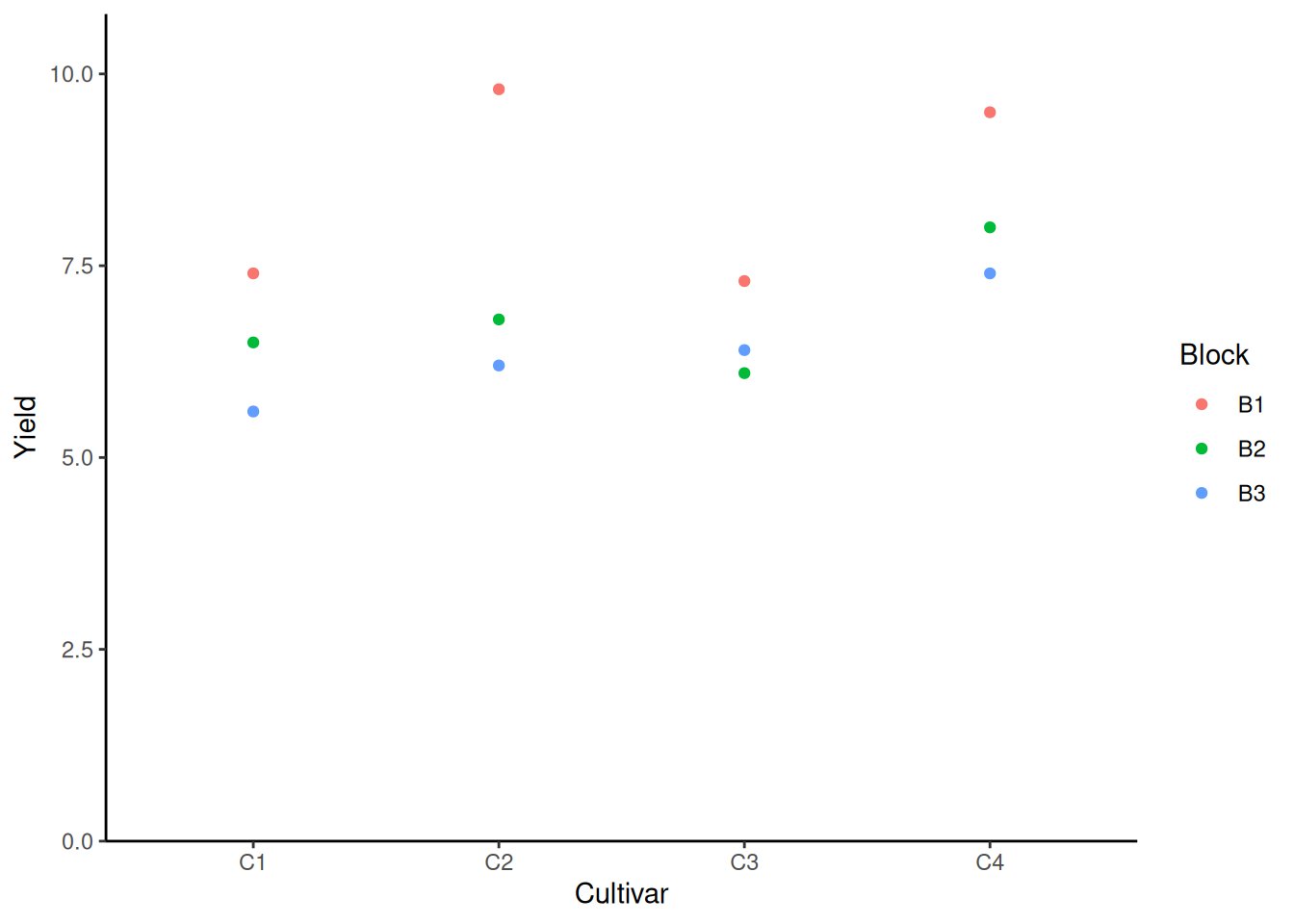

ggplot(data = dat) +
  aes(y = yield, x = cultivar, color = block) +
  geom_point() +
    scale_x_discrete(
    name = "Cultivar"
  ) +
  scale_y_continuous(
    name = "Yield",
    limits = c(0, NA),
    expand = expansion(mult = c(0, 0.1))
  ) +
  scale_color_discrete(
    name = "Block"
  ) +
  theme_classic()

From the plot we know that no matter under which circumstance, field 1 yields the best result.

Linear Model

mod <- lm(yield ~ cultivar + block, data = dat)
mod


Call:
lm(formula = yield ~ cultivar + block, data = dat)

Coefficients:
(Intercept)   cultivarC2   cultivarC3   cultivarC4      blockB2      blockB3
       7.75         1.10         0.10         1.80        -1.65        -2.10

The formula of the yield is:

\[ yield = Int + cultivar_i + block_j \]

where \(cultivar_i\) is the treatment coefficient (in our case, the effect of using different cultivars), \(block_j\) is the block coefficient. The intercept (\(Int\)) corresponds to the baseline, i.e. the yield of using C1 and on block 1. The result of using different treatment on different blocks can be summarized as following:

Pred C1 in B1: \(7.75 + 0 + 0 = 7.75\)
Pred C1 in B2: \(7.75 + 0 + -1.65 = 6.10\)
Pred C1 in B3: \(7.75 + 0 + -2.10 = 5.65\)
…
Pred C4 in B1: \(7.75 + 1.80 + 0 = 9.55\)
Pred C4 in B2: \(7.75 + 1.80 + -1.65 = 7.90\)
Pred C4 in B3: \(7.75 + 1.80 + -2.10 = 7.45\)

ANOVA

ANOVA <- anova(mod)
ANOVA

Analysis of Variance Table

Response: yield
          Df Sum Sq Mean Sq F value   Pr(>F)
cultivar   3   6.63    2.21   5.525 0.036730 *
block      2   9.78    4.89  12.225 0.007651 **
Residuals  6   2.40    0.40
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

EM Means

Instead of the effect of different blocks, people only interested in which cultivar is the most effective. Thus we need to evaluate the mean yield of each cultivar.

Manual calculation of emmeans for cultivars:

emmean C1: \(7.75 + 0 + mean(c(0, -1.65, -2.10)) = 6.5\)
emmean C2: \(7.75 + 1.10 + mean(c(0, -1.65, -2.10)) = 7.6\)
emmean C3: \(7.75 + 0.10 + mean(c(0, -1.65, -2.10)) = 6.6\)
emmean C4: \(7.75 + 1.80 + mean(c(0, -1.65, -2.10)) = 8.3\)

Note that these values are identical to the simple mean (mymeans variables). But emmean is still preferred, especially when there’s missing data and when mixed models are used. In those cases, emmean and simple mean won’t be identical.

mean_comp <- mod %>%
  emmeans(specs = ~ cultivar) %>% # adj. mean per cultivar
  cld(adjust = "none", Letters = letters) # compact letter display (CLD)

mean_comp

 cultivar emmean    SE df lower.CL upper.CL .group
 C1          6.5 0.365  6     5.61     7.39  a
 C3          6.6 0.365  6     5.71     7.49  a
 C2          7.6 0.365  6     6.71     8.49  ab
 C4          8.3 0.365  6     7.41     9.19   b

Results are averaged over the levels of: block
Confidence level used: 0.95
significance level used: alpha = 0.05
NOTE: If two or more means share the same grouping symbol,
      then we cannot show them to be different.
      But we also did not show them to be the same.

Plot the Result

Code

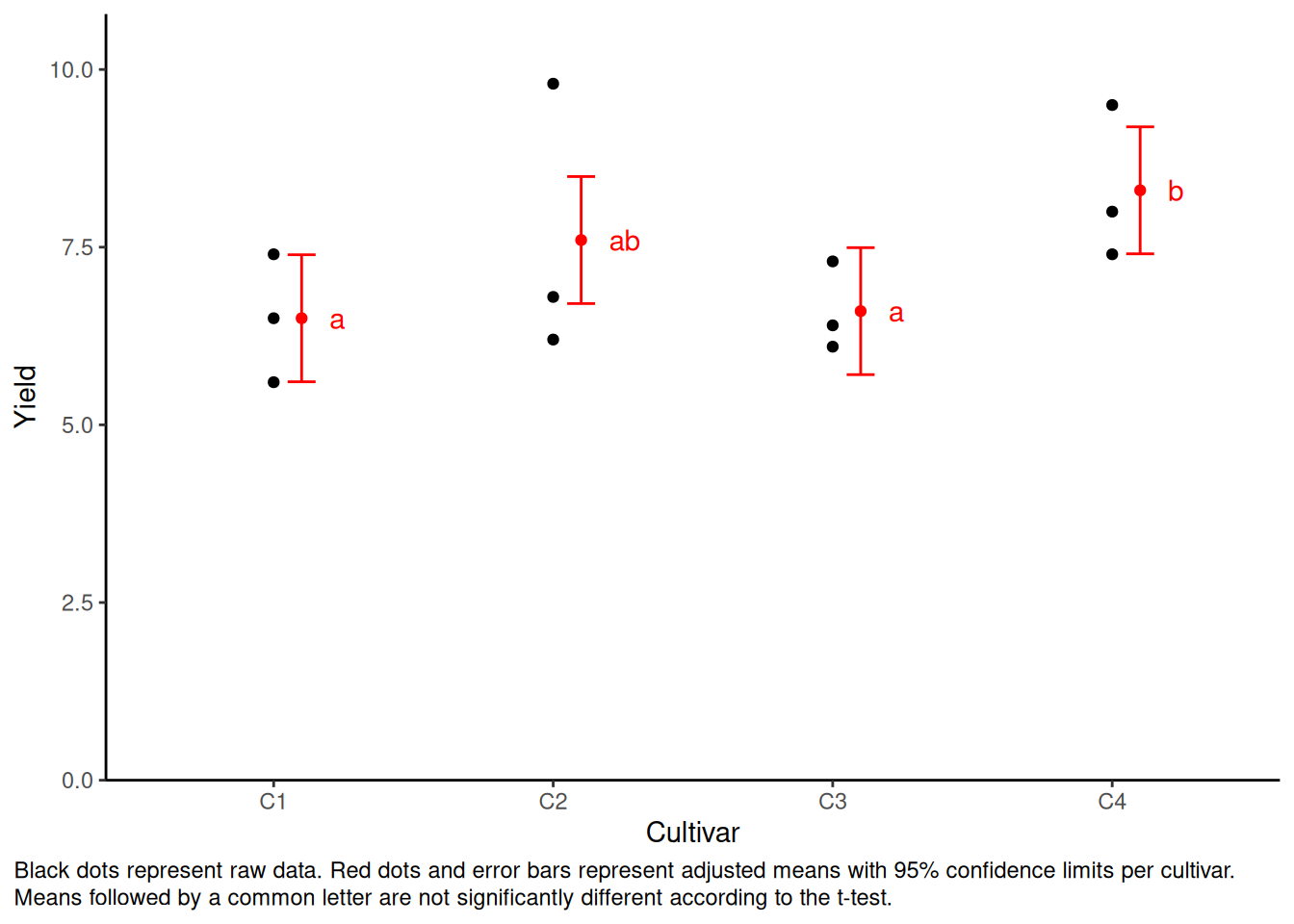

my_caption <- "Black dots represent raw data. Red dots and error bars represent adjusted means with 95% confidence limits per cultivar. Means followed by a common letter are not significantly different according to the t-test."

ggplot() +
  aes(x = cultivar) +
  # black dots representing the raw data
  geom_point(
    data = dat,
    aes(y = yield)
  ) +
  # red dots representing the adjusted means
  geom_point(
    data = mean_comp,
    aes(y = emmean),
    color = "red",
    position = position_nudge(x = 0.1)
  ) +
  # red error bars representing the confidence limits of the adjusted means
  geom_errorbar(
    data = mean_comp,
    aes(ymin = lower.CL, ymax = upper.CL),
    color = "red",
    width = 0.1,
    position = position_nudge(x = 0.1)
  ) +
  # red letters
  geom_text(
    data = mean_comp,
    aes(y = emmean, label = str_trim(.group)),
    color = "red",
    position = position_nudge(x = 0.2),
    hjust = 0
  ) +
  scale_x_discrete(
    name = "Cultivar"
  ) +
  scale_y_continuous(
    name = "Yield",
    limits = c(0, NA),
    expand = expansion(mult = c(0, 0.1))
  ) +
  scale_color_discrete(
    name = "Block"
  ) +
  theme_classic() +
  labs(caption = my_caption) +
  theme(plot.caption = element_textbox_simple(margin = margin(t = 5)),
        plot.caption.position = "plot")

You use a split-plot design, when one factor is harder to randomize than the other. You first create main plots (=blocks inside your blocks) with respect to the harder-to-randomize factor.

What will happen when we don’t consider the Block Effect

We build a linear model using solely the cultivar:

mod_no_block <- lm(yield ~ cultivar, data = dat)

mean_comp_no_block <- mod_no_block %>%
  emmeans(specs = ~ cultivar) %>% # adj. mean per cultivar
  cld(adjust = "none", Letters = letters) # compact letter display (CLD)

Code

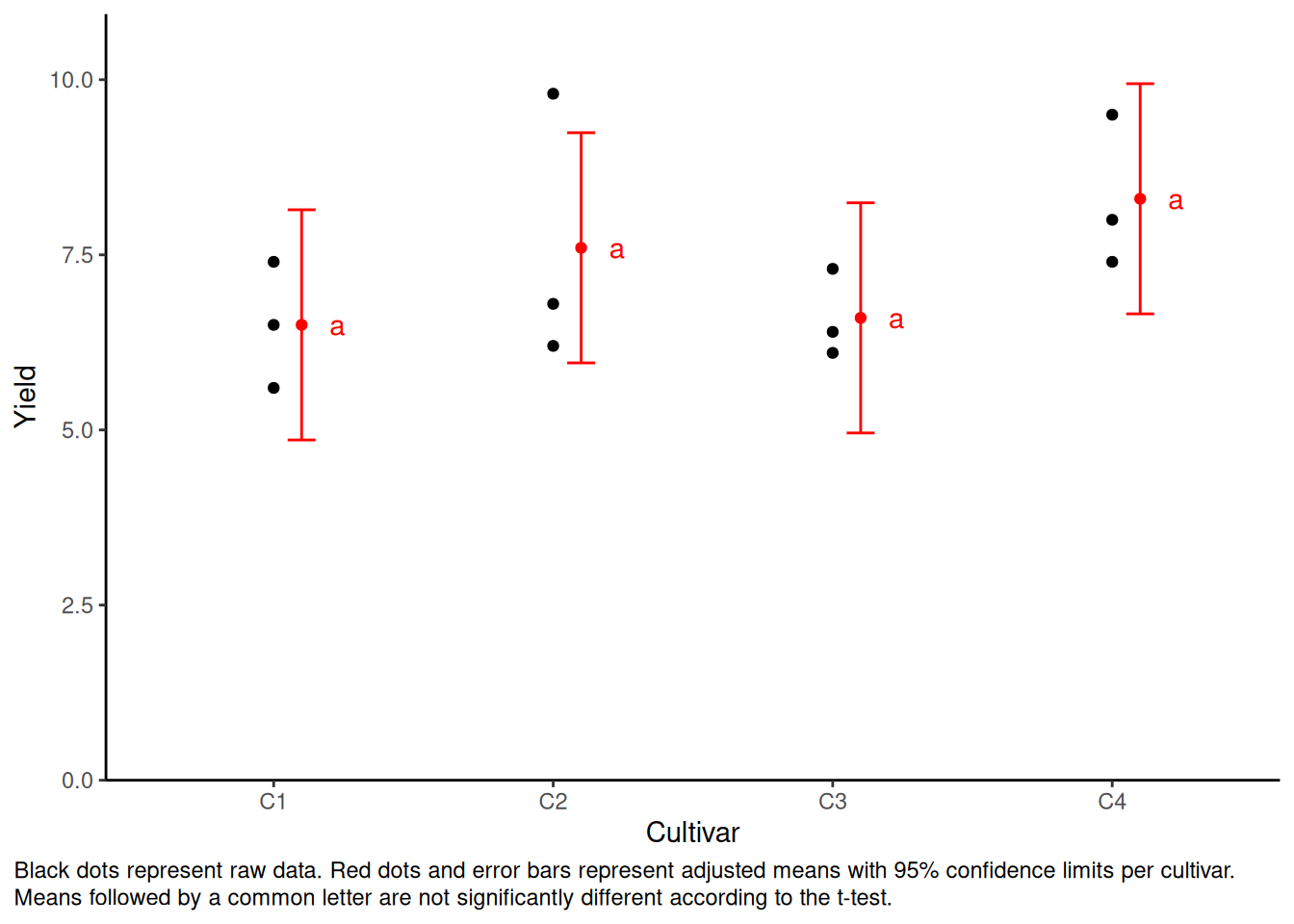

my_caption <- "Black dots represent raw data. Red dots and error bars represent adjusted means with 95% confidence limits per cultivar. Means followed by a common letter are not significantly different according to the t-test."

ggplot() +
  aes(x = cultivar) +
  # black dots representing the raw data
  geom_point(
    data = dat,
    aes(y = yield)
  ) +
  # red dots representing the adjusted means
  geom_point(
    data = mean_comp_no_block,
    aes(y = emmean),
    color = "red",
    position = position_nudge(x = 0.1)
  ) +
  # red error bars representing the confidence limits of the adjusted means
  geom_errorbar(
    data = mean_comp_no_block,
    aes(ymin = lower.CL, ymax = upper.CL),
    color = "red",
    width = 0.1,
    position = position_nudge(x = 0.1)
  ) +
  # red letters
  geom_text(
    data = mean_comp_no_block,
    aes(y = emmean, label = str_trim(.group)),
    color = "red",
    position = position_nudge(x = 0.2),
    hjust = 0
  ) +
  scale_x_discrete(
    name = "Cultivar"
  ) +
  scale_y_continuous(
    name = "Yield",
    limits = c(0, NA),
    expand = expansion(mult = c(0, 0.1))
  ) +
  scale_color_discrete(
    name = "Block"
  ) +
  theme_classic() +
  labs(caption = my_caption) +
  theme(plot.caption = element_textbox_simple(margin = margin(t = 5)),
        plot.caption.position = "plot")

This time the standard deviations of each cultivar become bigger. In addition, the letter are always “a”, meaning that t-test failed to find the statistic significance. The reason is that the model doesn’t know about the blocks and thinks some of the data (e.g. the highest point of C2) are noise.
